Provide signal interface
Our marking machine can provide a variety of interfaces, such as PLC, RS232, RS485, etc., which can connect with your equipment or upload data.

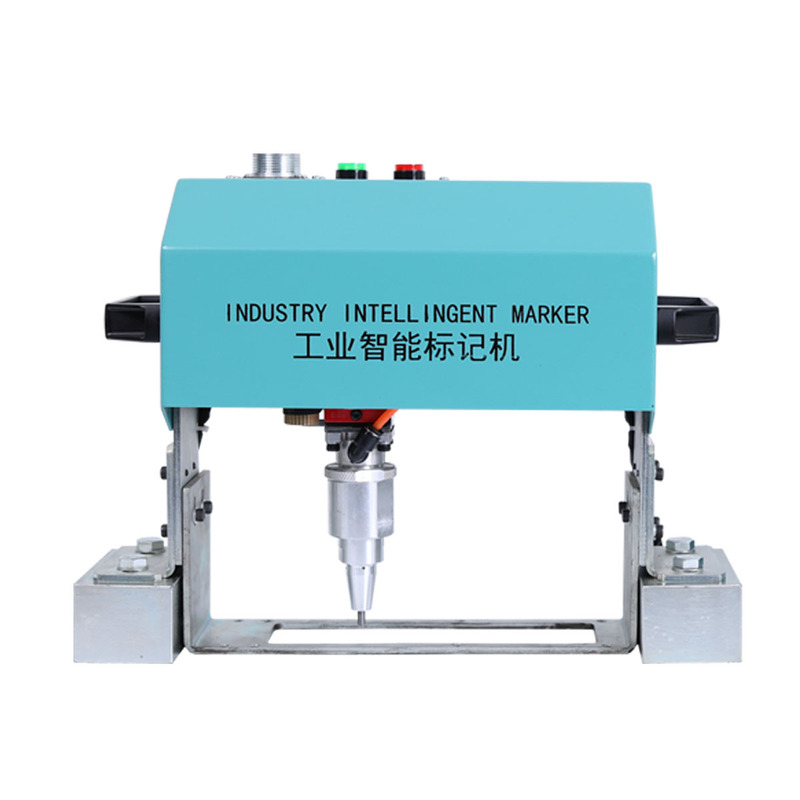

This model is Dot Matrix Pneumatic Marking Machine
1. This model can be used for VIN code engraving of trailer, truck or car. 2.This model can be used for steel plate number marking. 3.This model can be used for the engraving of industrial mold number. 4. If you don't know whether this model is suitable for you, please feel free to contact us.
| Power Supply | AC100~240V 50HZ/60HZ |
| Rated power | 200W |
| Air pressure | 0.3~0.8mpa |
| Printed content | Letters, numbers, characters, logos, Chinese characters, serial numbers |
| Printing range | 40*150mm |
| Engraving speed | 1 ~ 30 characters / min |
| Carving depth | 0.1~2mm(It depends on the hardness of the material) |
| Machine weight | 8KG(The weight does not include the control unit and accessories) |
| Control system | Windows XP, 7,8,10 32-bit or 64 bit operating system |
| Customer provided resources | Computer, air pump, power supply |
You can choose this product with different configurations
Section 1:
1:Machine model:UK40150-D
2:Printing range:40*150mm
3:Carving depth: 0.1 to 1 mm (According to the hardness of the material)
4:The customer is required to prepare the air pump.
5:This model has electromagnet to fix the machine.
6: This marking machine needs to be connected to a computer, and the operating system needs to be windows. For example, Windows XP, Windows 7, Windows 8, windows 10.
Section2:
1:Machine model:UK40150
2:Printing range:40*150mm
3:Carving depth: 0.1 to 1 mm (According to the hardness of the material)
4:The customer is required to prepare the air pump.
5:This model has no electromagnet to fix the machine.
6:This marking machine needs to be connected to a computer, and the operating system needs to be windows. For example, Windows XP, Windows 7, Windows 8, windows 10
Section3:
1:Machine model:UK40150-ND
2:Printing range:40*110mm
3:Carving depth: 0.1 to 1 mm (According to the hardness of the material)
4:The customer is required to prepare the air pump.
5:This model has no electromagnet to fix the machine.
6:This marking machine needs to be connected to a computer, and the operating system needs to be windows. For example, Windows XP, Windows 7, Windows 8, windows 10.
Section4:
1:Machine model:UK40150-HD
2:Printing range:40*60mm / 40*100mm
3:The replacement of short needle is the same as the Section 1.
4:Carving depth: 0.1 to 1 mm (According to the hardness of the material)
5:The customer is required to prepare the air pump.
6: This marking machine needs to be connected to a computer, and the operating system needs to be windows. For example, Windows XP, Windows 7, Windows 8, windows 10. 7:When replacing the short needle, this model has electromagnet to fix the machine
Section5:
1:Machine model:UK40150-H
2:Printing range:40*60mm / 40*100mm
3:If the short needle machine is replaced, it is the same as the Section 2.
4:Carving depth: 0.1 to 1 mm (According to the hardness of the material)
5:The customer is required to prepare the air pump.
6:This marking machine needs to be connected to a computer, and the operating system needs to be windows. For example, Windows XP, Windows 7, Windows 8, windows 10. 7:This model has no electromagnet to fix the machine.
Show machine dimensions
(Manual measurement error, for reference only)
MODLE: 40150-D: SIZE: H=245mm L=315mm W=130mm
MODLE: 40150 SIZE: H=245mm L=260mm W=130mm
MODLE: 40150-ND SIZE: H=245mm L=260mm W=130mm
MODLE: 40150-HD SIZE: H=350mm L=315mm W=130mm
MODLE: 40150-H SIZE: H=350mm L=260mm W=130mm
The following is a multi - Angle photo of the main marking machine
PS: The picture above shows the four angles of the marking machine. A:Front left view. B: Front right view. C:Rear left view. D:Right rear view.
Marking machine interface description
1: A is the control switch of the electromagnet.
2: B is the interface to the host. (link interface H).
3: C is the interface to the air source
4: D is the switch that controls the start of imprinting.
5: E is for the emergency stop switch.
6: F is for the printing needle.
7: G is an electromagnet for fixing the marking machine.
8: J is for the power interface. The voltage is 110V or 220V
9: H Interface of the link coder (link interface B).
10: I is the interface (USB port) to connect the computer.
Marking machine engraving effect drawing
