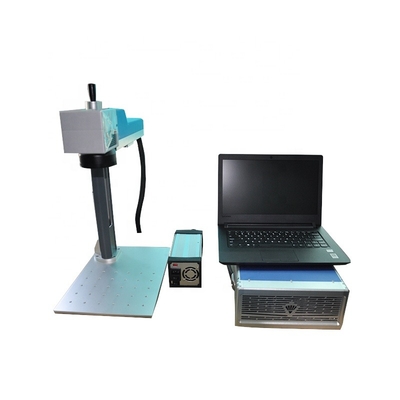

Portable mini mopa color fiber laser marking sundor 20w 30w 50w metal laser engraving machinery
Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world’s most advanced laser technology.
Send inquiry here!
Difference of 20w 30w 50w laser power
20w fiber laser marking machine
The most hot selling system by lowest price advantage. Especially on plastic and hard metals, it occurs perfect results. automotive, packing, kitchenware equipment, hand tools sectors are main ways preferred on
30w fiber laser marking machine
suitable for job shops and people who needs more power. One upper level then marking towards cutting. Especially for cutting, this is the first machine fits your requirement to cut.
50w fiber laser marking machine
do deep engraving, micro cutting, marking and 3D engraving perfect. Mostly preferred by jewelry sector, creates %40 more effective results according to its competitors. One of the fastest model in market.
Excellent beam quality
The optical fiber laser is the medium mixed yb double-clad fiber, resonant cavity length, so the beam quality is very good, M2 value is 1.2-1.5, the output flare diameter can achieve 10 microns.
Excellent beam quality to ensure that optical fiber laser marking machine in a variety of material satisfying marking effects, widely applied in most metal marking industries (such as brass, titanium, steel, iron, aluminum and so on) and non metal materials like cloth, fabric, PVC, MDF, leather, acrylic, plastic and etc.
Laser long service life
MH-FP series optical fiber laser marking machine use 1064 nm laser diode as the sources are used to pump, the average working hours can up to 100000 hours.
Small and exquisite Volume , applicable in the bad environment
Optical fiber surface area/volume ratio is high, also good cooling effect, no need huge water cooling system, just simple air cooling, can be running in bad conditions, such as high impact, high vibration, high temperature, dirt under the conditions of the normal operation.
Free maintenance operation
Optical fiber laser no need for any maintenance (not including adjust or clean lens)
Light path and galvo scanner
The optical system: 1064 nm based on the high precision, vibrating mirror reflection focusing system.
Laser correction: choose red visible laser collimator's systems instructions axis position, indicating light and laser coaxial, in the process to tracing the function of the instructions and timely and accurate registration.
Galvo mirror is set to track operation of the laser executive mechanism, and it mainly consists of high accuracy servo motor, motor driven plate, mirror, F-θ lens and dc supply of power.
Computer control system
Laptop with WINDOWS operating system in English
Special marking software
Marking software in WINDOWS interface,English operating system, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD and so on many kinds of drawing software:time date, bar code, serial number, mark, output in English, graphics, all kinds of bar code, Qr code, etc. Word stock the function is all ready, 200 kinds of fonts, can customize wired font, creating one of the proprietary dictionaries.
Online fiber laser marking machine
Laser marking in non-metal materials:
1.The color contrast of keyboard characters after marking is good, feel smooth, neat edge.
2.Non-polluting, non-shedding, in line with the electronics industry safety and export standards
3.Marking readable barcodes and 2D codes
4.Hyperfine processing is available
5.Marking moving objects online, ideal for packaging industry
Laser marking in metal materials:
Use the laser beam of high energy density mark beautiful illustrations
on the variety metals, alloys and metal coating surface.
Main application areas are hardware tools, machinery parts, machinery and instruments, auto parts, hardware, electronic components , computer communication components and devices clothing accessories, medical equipment, signs nameplate, tableware, hairstyling tools,jewelry, stationery gifts mobile watch phones and so on.
1. High reliability, long continuous operation time, clear and complete printing .
2. Supported by rich software, enable to collect and manufacture various labels, non-contact processing
3. Ensure original precision of the surface of work piece to the maximum limit.
4. Suitable for engraving on various materials, long time preserve, simple installation and convenient maintenance.
How can I choose the power of the fiber laser marking machine :of the 10w 20w 30w 50w Table type fiber laser marking machine for metal, steel
1. According to the marking area:
20w :100mmx100mm,175mmx175mm
30w:100mmx100mm,175mmx175mm,200mmx200mm
50w:100mmx100mm,175mmx175mm,200mmx200mm,250mmx250mm,300mmx300mm
2.According to the depth requet:
20w :0.2mm (depend on the materials)
30w:0.3mm(depend on the materials)
50w:0.5mm(depend on the materials)
Please noted that laser marking machine is not good at marking depth , if you want to get the effect depth you want , it will be need marking many times.
